Upgrading Clusters with Image-Based Upgrade (IBU)⌗
In this blog, I will focus on how to upgrade the clusters in your infrastructure managed by Red Hat Advanced Cluster Management (RHACM), specifically using the new upgrade mechanism called Image-Based Upgrade (IBU).
Previously, you could upgrade your infrastructure using the standard OpenShift upgrade method:
Or by simply using the oc cli, as described in the official documentation.
Both methods trigger the same process, updating the operating system, OpenShift, operators, etc. For a Single Node OpenShift (SNO), the time required varies based on configuration but typically takes around 60–70 minutes.
In telecommunications scenarios, SNOs are designed to run the Telco Radio Access Network (RAN). You can think of the software managing every antenna, meaning your infrastructure consists of thousands of antennas that need to be upgraded. This process is conducted within a strict maintenance window with very tight time constraints.
IBU addresses this challenge by providing an upgrade mechanism that reduces upgrade time to approximately 15/20 minutes. IBU works by creating an image from a “seed” cluster. All clusters in your infrastructure that are considered clones of this seed cluster can be upgraded using this image. This mechanism is particularly well-suited for homogeneous telco RAN environments composed exclusively of SNOs. However, IBU is not suitable for multi-node clusters or heterogeneous infrastructures. In fact, IBU includes pre-checks to ensure compliance with telco RAN configurations. So, it cannot be used for other purposes (as today).
In this blog, I will briefly cover how this new upgrade process works, but I will not go into details on configuring, installing, or deploying your infrastructure. The starting point assumes three SNOs are already installed, configured, and managed by ACM.

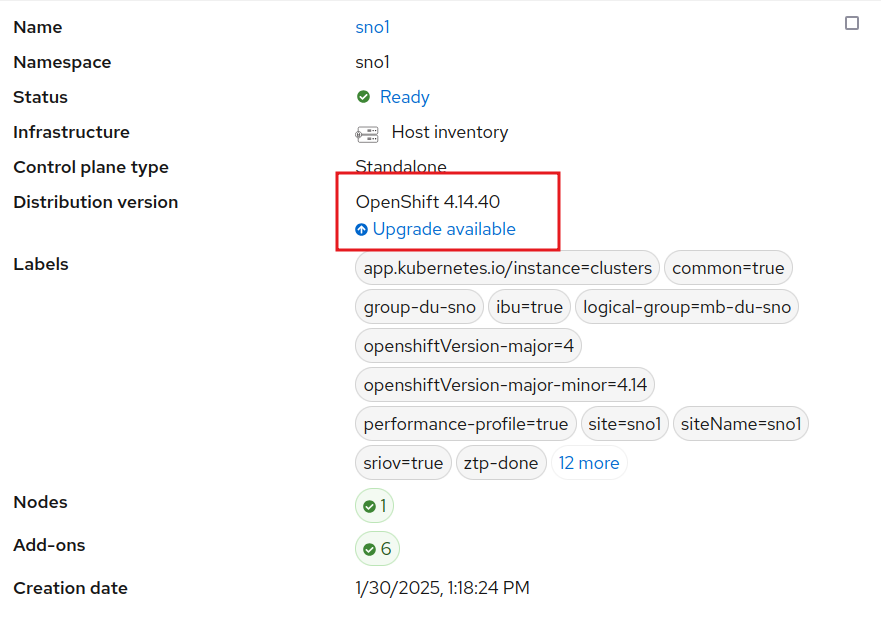

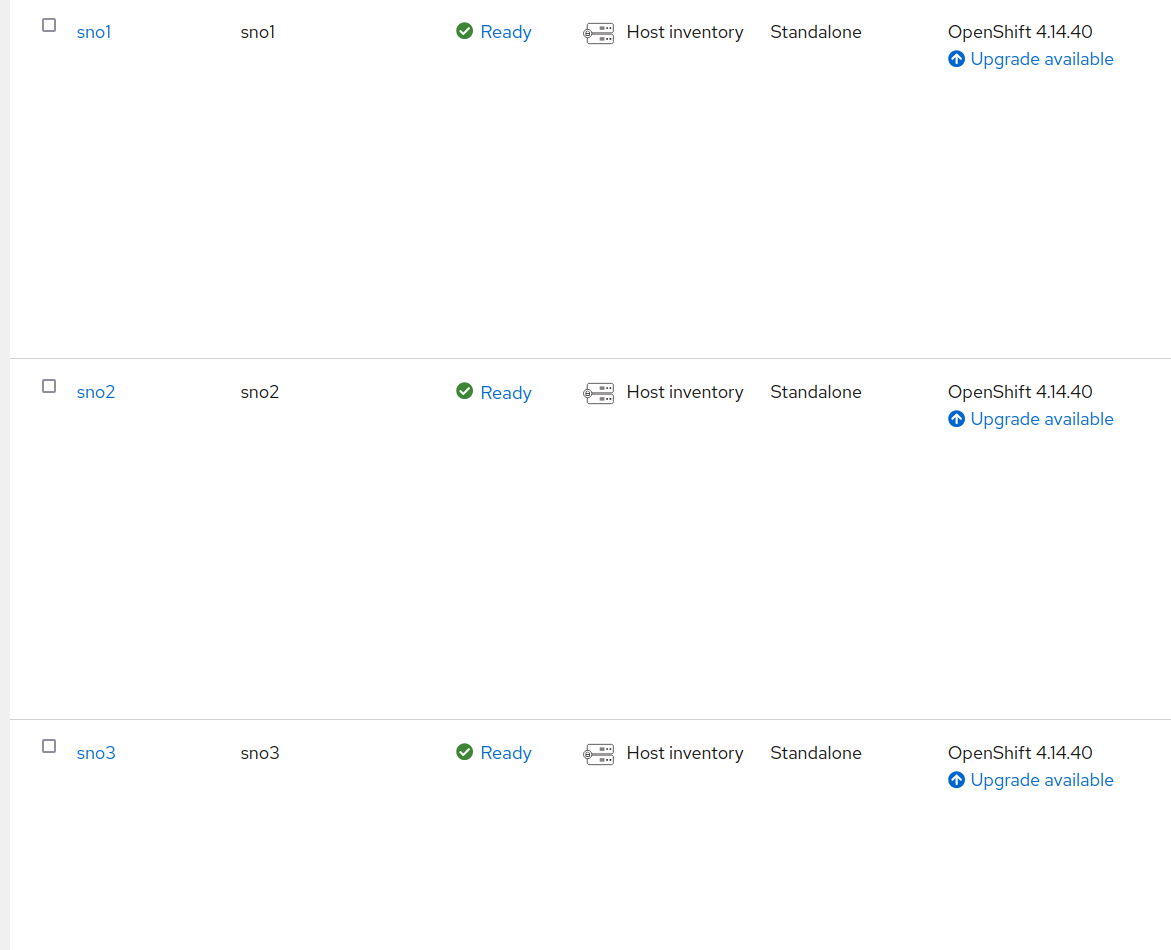

Notice that all these clusters are running OpenShift 4.14, and we aim to upgrade them to 4.16. Another advantage of IBU is that we can move directly to 4.16 without needing to first upgrade to 4.15 (which would take an extra hour).
A fourth cluster, SNO4, will be used as the seed cluster. All clusters share the same hardware, software, and network configuration.
Using the Seed Cluster to Create the Upgrade Image⌗
For a more detailed explanation, refer to the official documentation.
The seed cluster is essentially a cloned environment that contains the desired software version. In this case, SNO4 has been deployed with OpenShift 4.16, the target upgrade version, while maintaining the same hardware and network configuration as the others.
The seed cluster should be treated as an ephemeral environment. It is installed, configured, used to generate the seed image, and then removed. It does not run any additional workloads, as these will be handled by the upgraded clusters later. Using a long-running cluster as a seed risks creating an image that is not as clean as expected.
If the seed cluster is part of ACM (or ZTP), it should be detached first to ensure that the resulting image does not contain workloads related to ACM.
Apart from the usual OpenShift installation and RAN configurations (not covered in this blog), two additional operators are required:
- Operator Lifecycle Agent: Triggers the image creation process.
- OADP (OpenShift APIs for Data Protection): Manages backups. The seed cluster does not perform backups, and it does not really need it. But it is installed, to be included as part of the seed image. When the other clusters use the seed image they will have the operator ready to restore their own individual backups.
Refer to the official documentation for installation instructions, but installing these operators follows the standard OpenShift operator installation process.
Once the operators are installed, we trigger the seed creation. First, we create a secret to authenticate with the container registry where the image will be stored:
apiVersion: v1
kind: Secret
metadata:
name: seedgen
namespace: openshift-lifecycle-agent
type: Opaque
data:
seedAuth: <base64_encoded_auth>
In my case, I use Quay.io, and seedAuth is a base64-encoded JSON similar to:
{
"auths": {
"quay.io/jgato": {
"auth": "amdhdG9......FuX0c2bmE="
}
}
}
Now, we initiate the seed generation creathing the following manifest:
apiVersion: lca.openshift.io/v1
kind: SeedGenerator
metadata:
name: seedimage
spec:
seedImage: quay.io/jgato/sno4:4.16.9
Monitoring the Image Creation⌗
We can monitor the image creation process:
$ oc create -f seedgenerator.yaml && oc get seedgenerators.lca.openshift.io -w
seedgenerator.lca.openshift.io/seedimage created
NAME AGE STATE DETAILS
seedimage 0s
seedimage 0s SeedGenInProgress Waiting for system to stabilize
seedimage 2s SeedGenInProgress Starting seed generation
seedimage 2s SeedGenInProgress Pulling recert image
seedimage 7s SeedGenInProgress Preparing for seed generation
seedimage 8s SeedGenInProgress Cleaning cluster resources
seedimage 80s SeedGenInProgress Launching imager container
seedimage 80s SeedGenInProgress Launching imager container
At this point, kubelet is stopped, and a container is created outside OpenShift to generate the image. Once the process is complete, kubelet restarts, and we confirm the image has been successfully uploaded to Quay.io:
$ oc get seedgenerators.lca.openshift.io -w
NAME AGE STATE DETAILS
seedimage 21s SeedGenCompleted Seed Generation completed

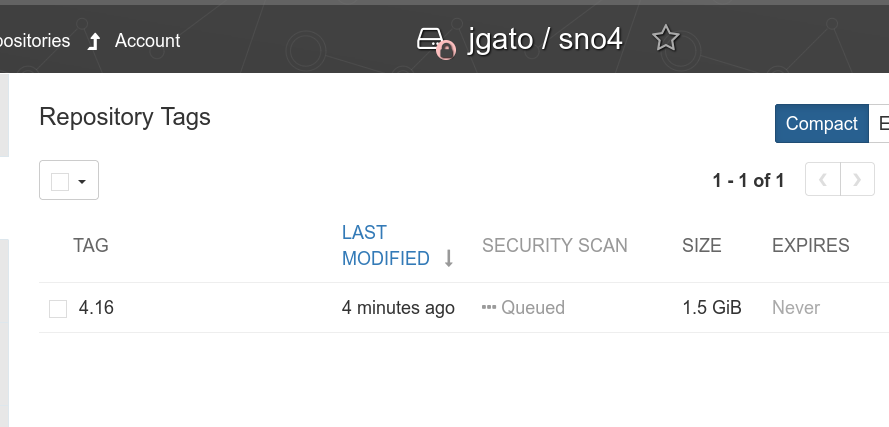

Upgrading clusters⌗
Preparing the backup⌗
Unlike a seed cluster, the cluster that will be upgraded is an operational one, which will continue running its workloads. These additional workloads will be included in a backup (using OADP) and restored after the upgrade. Other than that, the clusters are essentially the same.
For example, I’ve deployed a simple workload in the example-workload namespace, which uses a PersistentVolume provided by the LocalStorageOperator. This serves as an example for the backup and restore process. Keep in mind that the seed image aims to be as clean as possible, so it’s your responsibility to back up your workloads, PVs, roles, and any necessary CRDs.
> oc -n example-workload get deployment,pod,pvc
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/exception-app-deployment 1/1 1 1 56s
NAME READY STATUS RESTARTS AGE
pod/exception-app-deployment-7c9ff94dd9-c52x2 1/1 Running 0 57s
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
persistentvolumeclaim/my-pvc Bound local-pv-4ad70ba3 1Gi RWO general 13m
The Pod is just simulating some exceptions (just an example):
> oc -n example-workload logs exception-app-deployment-7c9ff94dd9-c52x2
{"timestamp": "2025-01-31T09:16:18.080413Z", "level": "INFO", "message": "Running... Exception will be raised in 30 seconds.", "app": "exception-app"}
Traceback (most recent call last):
File "/app/exception_app.py", line 36, in cause_complex_exception
level_one()
File "/app/exception_app.py", line 28, in level_one
level_two()
File "/app/exception_app.py", line 31, in level_two
level_three()
File "/app/exception_app.py", line 34, in level_three
raise Exception("Custom exception at level three")
Exception: Custom exception at level three
Let’s take a look at how things continue to work after the upgrade.
When preparing the backup, it depends on the SNO and various options for operators and storage. I won’t cover these details in this blog to keep it from becoming too overwhelming, but you can find all the information here. Instead, I’ll focus on how to back up and restore a custom workload.
apiVersion: velero.io/v1
kind: Backup
metadata:
labels:
velero.io/storage-location: default
name: backup-app
namespace: openshift-adp
spec:
includedNamespaces:
- example-workload
includedNamespaceScopedResources:
- persistentvolumeclaims
- deployments
excludedClusterScopedResources:
- persistentVolumes
---
apiVersion: velero.io/v1
kind: Restore
metadata:
name: test-app
namespace: openshift-adp
labels:
velero.io/storage-location: default
annotations:
lca.openshift.io/apply-wave: "4"
spec:
backupName:
backup-app
This custom back, and other backups needed but not covered in this blog, dont need to be directly created on the cluster. These need to be included into a ConfigMap:
> oc create -n openshift-adp configmap oadp-cm-example \
--from-file=backup-acm-klusterlet.yaml=backup-acm-klusterlet.yaml \
--from-file=backup-workload.yaml=backup-workload.yaml
And we patch the ImageBaseUpgrade resource with the backups.
> oc patch imagebasedupgrade upgrade \
-p='{"spec": {"oadpContent": [{"name": "oadp-cm-example", "namespace": "openshift-adp"}]}}' --type=merge
Triggering the backup⌗
The whole process I am explaining is more detailed here
On all the backups waiting to receive an upgrade, it has been installed the Lifecycle Agent operator. This, will automatically create the ImageBaseUpgraded CR in charge of managing the upgrade.
Initially we are in the idle stage:
$ oc get ibu upgrade
NAME AGE DESIRED STAGE STATE DETAILS
upgrade 18h Idle Idle Idle
There are other stages that supports the logic of the whole Lifecycle Agent.
Before moving to pre stage, we have to configure the seedImageRef.
apiVersion: lca.openshift.io/v1
kind: ImageBasedUpgrade
metadata:
creationTimestamp: "2025-02-05T16:26:36Z"
generation: 5
name: upgrade
resourceVersion: "225303"
uid: 7b9ca970-b418-453e-8673-ba5be07c9622
spec:
oadpContent:
- name: oadp-cm-example
namespace: openshift-adp
seedImageRef:
image: quay.io/jgato/sno4:4.16.9
pullSecretRef:
name: secret-pull-seed
version: 4.16.9
stage: Idle
The secret has been created on openshift-lifecycle-agent and contains the pullSecret to download the seed image:
apiVersion: v1
data:
.dockerconfigjson: ewoJYXV0aHM6IHsKCQlxd....Qp9Cg==
kind: Secret
metadata:
name: secret-pull-seed
namespace: openshift-lifecycle-agent
type: Opaque
Lets move to the pre stage:
$ oc patch imagebasedupgrades.lca.openshift.io upgrade -p='{"spec": {"stage": "Prep"}}' --type=merge -n openshift-lifecycle-agent
imagebasedupgrade.lca.openshift.io/upgrade patched
$ oc get ibu upgrade -w
NAME AGE DESIRED STAGE STATE DETAILS
upgrade 17h Prep InProgress Stateroot setup job in progress. job-name: lca-prep-stateroot-setup, job-namespace: openshift-lifecycle-agent
upgrade 17h Prep InProgress Successfully launched a new job precache. job-name: , job-namespace:
upgrade 17h Prep InProgress Precache job in progress. job-name: lca-prep-precache, job-namespace: openshift-lifecycle-agent. No precache status file to read yet.
upgrade 17h Prep InProgress Precache job in progress. job-name: lca-prep-precache, job-namespace: openshift-lifecycle-agent. total: 125 (pulled: 20, failed: 0)
upgrade 17h Prep InProgress Precache job in progress. job-name: lca-prep-precache, job-namespace: openshift-lifecycle-agent. total: 125 (pulled: 40, failed: 0)
...
...
upgrade 17h Prep Completed Prep stage completed successfully
Now, we are ready to do the upgrade, moving the ImageBaseUpgrade o the upgrade stage:
$ oc get clusterversion
NAME VERSION AVAILABLE PROGRESSING SINCE STATUS
version 4.14.40 True False 17h Cluster version is 4.14.40
$ date
Thu Feb 6 05:04:23 EST 2025
$ $ oc patch imagebasedupgrades.lca.openshift.io upgrade -p='{"spec": {"stage": "Upgrade"}}' --type=merge
$ oc get ibu upgrade -w
NAME AGE DESIRED STAGE STATE DETAILS
upgrade 17h Upgrade InProgress Backup of Application Data is in progress
upgrade 17h Upgrade InProgress Backing up Application Data
upgrade 17h Upgrade InProgress Exporting Application Configuration
upgrade 17h Upgrade InProgress Exporting Policy and Config Manifests
upgrade 17h Upgrade InProgress Exporting Cluster and LVM configuration
upgrade 17h Upgrade InProgress In progress
The SNO is rebooting. After that, in about 5 minute, you can see the node with the upgraded OCP version:
$ date
Thu Feb 6 05:10:56 EST 2025
$ oc get co
NAME VERSION AVAILABLE PROGRESSING DEGRADED SINCE MESSAGE
authentication 4.16.9 True False False 6d20h
config-operator 4.16.9 True False False 6d21h
dns 4.16.9 True False False 6d20h
etcd 4.16.9 True False False 6d21h
ingress 4.16.9 True False False 6d21h
kube-apiserver 4.16.9 True False False 6d21h
kube-controller-manager 4.16.9 True False False 6d21h
kube-scheduler 4.16.9 True False False 6d21h
kube-storage-version-migrator 4.16.9 True False False 6d21h
machine-approver 4.16.9 True False False 6d21h
machine-config 4.16.9 True False False 6d21h
marketplace 4.16.9 True False False 6d21h
monitoring 4.16.9 True False False 6d20h
network 4.16.9 True True False 6d21h DaemonSet "/openshift-multus/network-metrics-daemon" is waiting for other operators to become ready...
node-tuning 4.16.9 True False False 6d20h
openshift-apiserver 4.16.9 True False False 6d21h
openshift-controller-manager 4.16.9 True False False 6d21h
operator-lifecycle-manager 4.16.9 True False False 6d21h
operator-lifecycle-manager-catalog 4.16.9 True False False 6d21h
operator-lifecycle-manager-packageserver 4.16.9 True False False 6d20h
service-ca 4.16.9 True False False 6d21h
But still some work to do.
$ oc get ibu upgrade -w
NAME AGE DESIRED STAGE STATE DETAILS
upgrade 7m2s Upgrade InProgress Waiting for system to stabilize: one or more health checks failed...
upgrade 7m28s Upgrade InProgress Applying Policy Manifests
upgrade 7m28s Upgrade InProgress Applying Config Manifests
upgrade 7m28s Upgrade InProgress Restoring Application Data
upgrade 7m28s Upgrade InProgress Restore of Application Data is in progress
upgrade 7m58s Upgrade InProgress Applying Policy Manifests
upgrade 7m58s Upgrade InProgress Applying Config Manifests
upgrade 7m58s Upgrade InProgress Restoring Application Data
upgrade 7m58s Upgrade InProgress Restore of Application Data is in progress
upgrade 8m28s Upgrade InProgress Applying Policy Manifests
upgrade 8m28s Upgrade InProgress Applying Config Manifests
upgrade 8m28s Upgrade InProgress Restoring Application Data
upgrade 8m30s Upgrade InProgress Restoring Application Data
upgrade 8m30s Upgrade InProgress Restoring Application Data
upgrade 8m30s Upgrade Completed Upgrade completed
[jgato@provisioner ~]$ date
Thu Feb 6 05:19:47 EST 2025
Everything done in about 15 minutes. Considering this is baremetal, only the reboot consumed about 5 of these minutes.
Lets check the restore of our workload:
$ oc -n example-workload get pod
NAME READY STATUS RESTARTS AGE
exception-app-deployment-575c65d8cf-szjsf 1/1 Running 0 94s

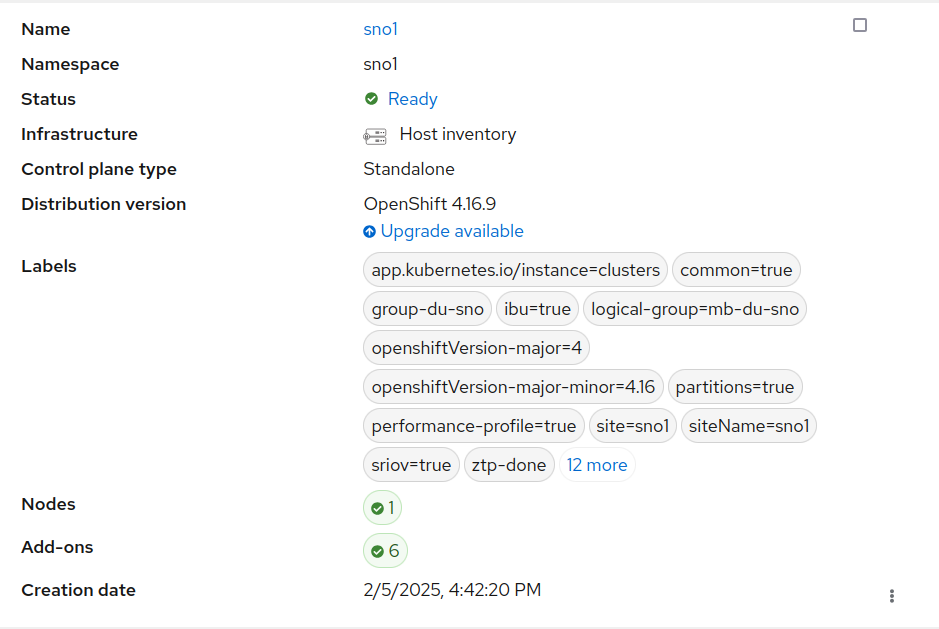

Remember this SNO was part of ACM, and we can check it is still there:
There are other features not tested in the blog, like rollback if fail. But I did not want to do it too complex and give only a first approach.
Upgrading a cluster with traditional upgrade⌗
Note: This is just a comparative on the amount of time, as reference. But it is not intended to compare (or to conclude) which one is better. As explained in the introduction IBU only covers very specific scenario and only SNO clusters. “Traditional” upgrade has to cover absolutely all the possible scenarios.
We take a similar SNO and (simplified installation steps for clarity of the blog):
To intermediate version 4.15.38
$ date
Thu Feb 6 05:34:15 EST 2025
$ oc adm upgrade --to=4.15.38
$ oc get clusterversion
NAME VERSION AVAILABLE PROGRESSING SINCE STATUS
version 4.15.38 True False 50s Cluster version is 4.15.38
$ date
Thu Feb 6 06:33:14 EST 2025
Then to 4.16.23 (there is no update path to .9, but it is oka). I also need some time to update some OLM Operators:
$ date
Thu Feb 6 06:46:10 EST 2025
$ oc adm upgrade --to=4.16.23
$ oc get clusterversion
NAME VERSION AVAILABLE PROGRESSING SINCE STATUS
version 4.15.38 True True 37s Working towards 4.16.23: 110 of 903 done (12% complete), waiting on etcd, kube-apiserver
[jgato@provisioner ~]$ oc get clusterversion -w
NAME VERSION AVAILABLE PROGRESSING SINCE STATUS
version 4.15.38 True True 58m Working towards 4.16.23: 764 of 903 done (84% complete), waiting on machine-config
version 4.15.38 True True 62m Working towards ...
...
version 4.16.23 True False 0s Cluster version is 4.16.23
$ date
Thu Feb 6 07:50:04 EST 2025
So, it took like another 60 minutes minutes to do the two upgrades up to reach to 4.16. In total around 120 minutes plus the extra if you have to upgrade OLM operators.
Conclusion⌗
Image-Based Upgrade for Single Node OpenShift clusters is an efficient way to upgrade clusters when there are very tight maintenance windows. However, it’s limited to specific scenarios, particularly when your infrastructure consists of homogeneous SNOs. In such cases, upgrades (including backup and restore of workloads) can take as little as 15-20 minutes, which is a significant improvement compared to other mechanisms that need to cover a wide range of possible scenarios.
